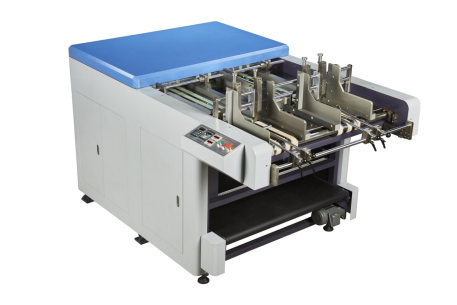

Semi-automatic High Accuracy Grooving Machine
LS-1000 is a high accuracy grooving machine, it is also to handle all kind of paper, for example cardboard, wooden paper and grey board. Whether it's packaging, printing or any other industry that requires precise notching, automatic cartonboard V-grooving machines deliver superior results.Quantity: -
LS-1000
-
longxingsheng
LS-1000 introduction
LS-1000 is a semi-automatic grooving machine, it is not only can it handle cardboard of various materials, it also has high safety performance. In terms of safety, the machine is equipped with various safety functions to protect operators and prevent accidents. Emergency stop buttons, protective covers, and automatic shut-off mechanisms are just a few examples of the safety measures incorporated into their design. This ensures a safe working environment and peace of mind for operators and business owners
finish grooving
Machine parameters
Machine model
LS-1000
LS-1000 XL
Quantity of groove at a time
8 slots
8 slots
Working speed
40m/min
40m/min
Max board size (width)
950mm
1100mm
Board thickness
1-4mm
1-4mm
Motor power
1.5kw/380v
2kw/380v
Machine dimension
L1320*W1200*H1300mm
L1320*W1600*H1300mm
Machine weight
900kg
1000kg
In conclusion, the automatic cardboard carton paper V grooving machine is revolutionizing the way manufacturers slot gray board, MDF, and cardboard. With its advanced technology and numerous advantages, it has become a hot sales item in the industry. By investing in this innovative solution, businesses can achieve higher productivity, superior quality, and a competitive edge in today's fast-paced manufacturing landscape.
LS-1000 introduction
LS-1000 is a semi-automatic grooving machine, it is not only can it handle cardboard of various materials, it also has high safety performance. In terms of safety, the machine is equipped with various safety functions to protect operators and prevent accidents. Emergency stop buttons, protective covers, and automatic shut-off mechanisms are just a few examples of the safety measures incorporated into their design. This ensures a safe working environment and peace of mind for operators and business owners
finish grooving
Machine parameters
Machine model
LS-1000
LS-1000 XL
Quantity of groove at a time
8 slots
8 slots
Working speed
40m/min
40m/min
Max board size (width)
950mm
1100mm
Board thickness
1-4mm
1-4mm
Motor power
1.5kw/380v
2kw/380v
Machine dimension
L1320*W1200*H1300mm
L1320*W1600*H1300mm
Machine weight
900kg
1000kg
In conclusion, the automatic cardboard carton paper V grooving machine is revolutionizing the way manufacturers slot gray board, MDF, and cardboard. With its advanced technology and numerous advantages, it has become a hot sales item in the industry. By investing in this innovative solution, businesses can achieve higher productivity, superior quality, and a competitive edge in today's fast-paced manufacturing landscape.
