Semi-automatic Stable Wine & Toy & Watch & Gift Rigid Box Making Machine
A LS-F6 is a rigid box forming machine, This machine can pruducts the rigid boxes in batches. It can complete side wrapping, edge folding, tucking and air compression at the same time, which is suitable for wrapping all kinds of rigid boxes, such as shoe boxes, gift boxes, mobile phone boxes, perfume boxes and more.Quantity: -
LS-F6
-
longxingsheng

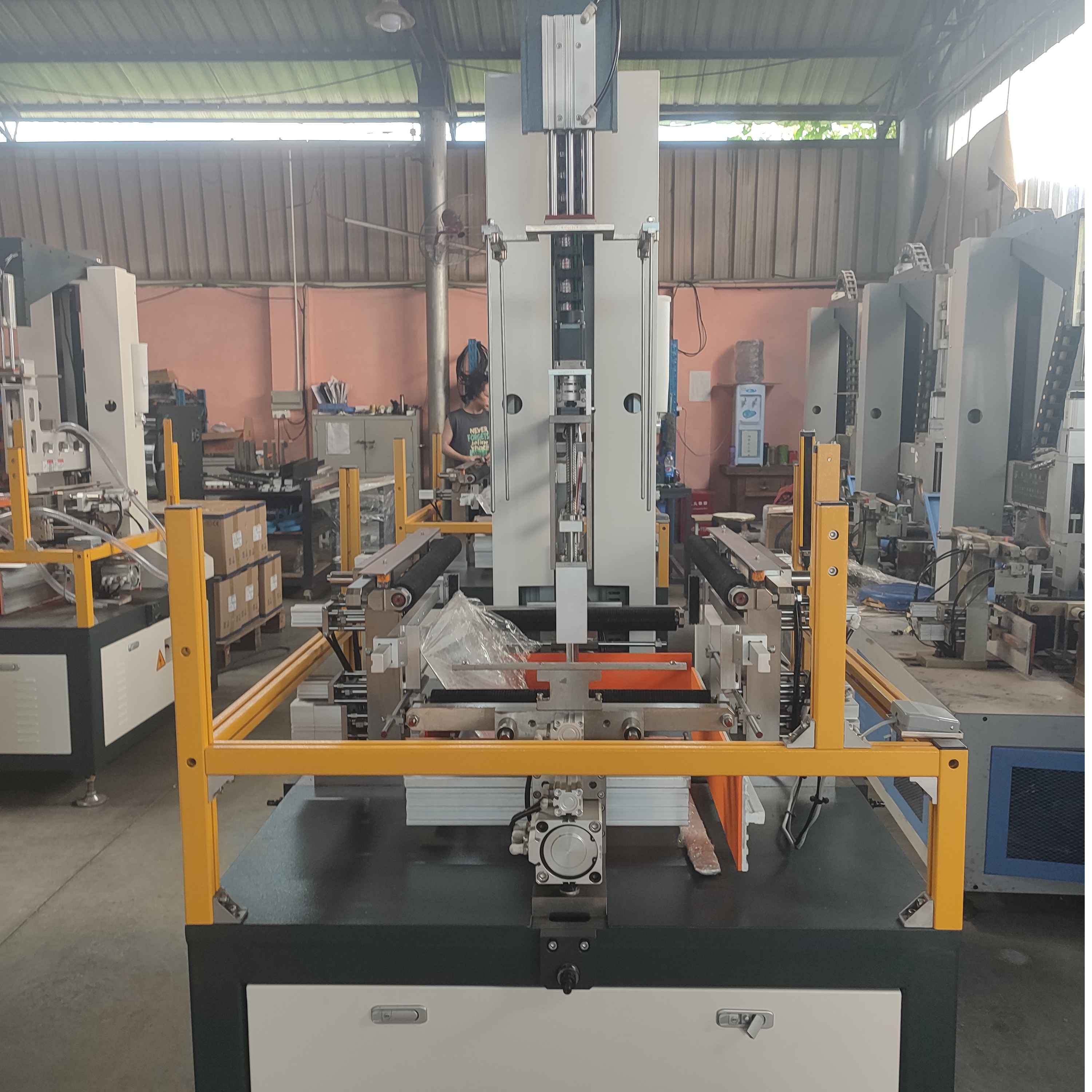

LS-F6 Semi-automatic Rigid Box Making Machine
About LS-F6 Machine
product description:
LS-F6 semi-automatic rigid box forming machine is an efficient and reliable equipment, which is specially used to produce exquisite rigid box packaging forming machine. The machine adopts advanced technology and innovative design, which can quickly and accurately complete the processes of hemming, folding and air compression. It is suitable for the packaging of various boxes, such as the molding of jewelry boxes, shoe boxes, gift boxes, mobile phone boxes, etc. Whether it is a small batch order or mass production, LS-F6 can meet various needs of customers. This machine is available in normal and extra sizes, no matter how big the box is, this machine can make boxes.
The maximum carton size of ordinary hard box forming machine is: 460*380*120mm, the minimum box forming size is 80*65*10mm. The forming size of the extra-large carton is 600*400*150mm, and the minimum forming size of the carton is 100*80*15mm.
Machine model
LS-F6
LS-F6-XL
Max box size
L460*W380*H120mm
L600*W400*H150mm
Min box size
L80*W65*H10mm
L100*W80*H15mm
Motor power
2.5kw/220v
2.5kw/220v
Working speed
≤28 pcs/min
≤28 pcs/min
Air pressure
10L/min 0.6MPa
10L/min 0.6MPa
Machine dimension
L1220*W960*H2100mm
L1450*W1150*H2250mm
Machine weight
950kg
1150kg
Main features of LS-F6:
Multifunctional operation: The LS-F6 machine can realize the one-time completion of hemming, folding and air compression, which greatly improves the production efficiency and work efficiency.
Simple operation: The machine adopts manual setting, which is easy and convenient to operate. Setup time is approximately 15 minutes and requires no complicated commissioning and adjustments.
High-speed operation: The LS-F6 machine has a fast production speed, and can complete the production of a box in the shortest time, with a maximum speed of 30 pcs/min.
Quality Assurance: The machine is manufactured with high-quality materials and parts to ensure the stability and reliability of the product and meet customers' pursuit of high-quality products. This machine has a double protection safety protection device, which makes the operation safer.
Multiple model selection: LS-F6 provides 2 times and 4 times models, according to different production needs and box sizes, customers can choose suitable models.
Application fields:
LS-F6 semi-automatic hard box forming machine is widely used in the packaging industry of various boxes. Whether it is a high-end jewelry box, fashion shoe box, exquisite gift box or mobile phone box, etc., LS-F6 can meet the packaging needs of different industries. Its efficient and precise operation makes the production process smoother and improves the appearance quality and market competitiveness of the product.
Summarize:
LS-F6 semi-automatic rigid box forming machine is a powerful, efficient and reliable packaging equipment. Its advanced technology and innovative design make the production process easier and faster, while ensuring the quality and stability of the product. Whether it is a small order or mass production, the LS-F6 can meet the needs of customers and is an ideal choice for your packaging line.
