LS-G3
LONGXINGSHENG

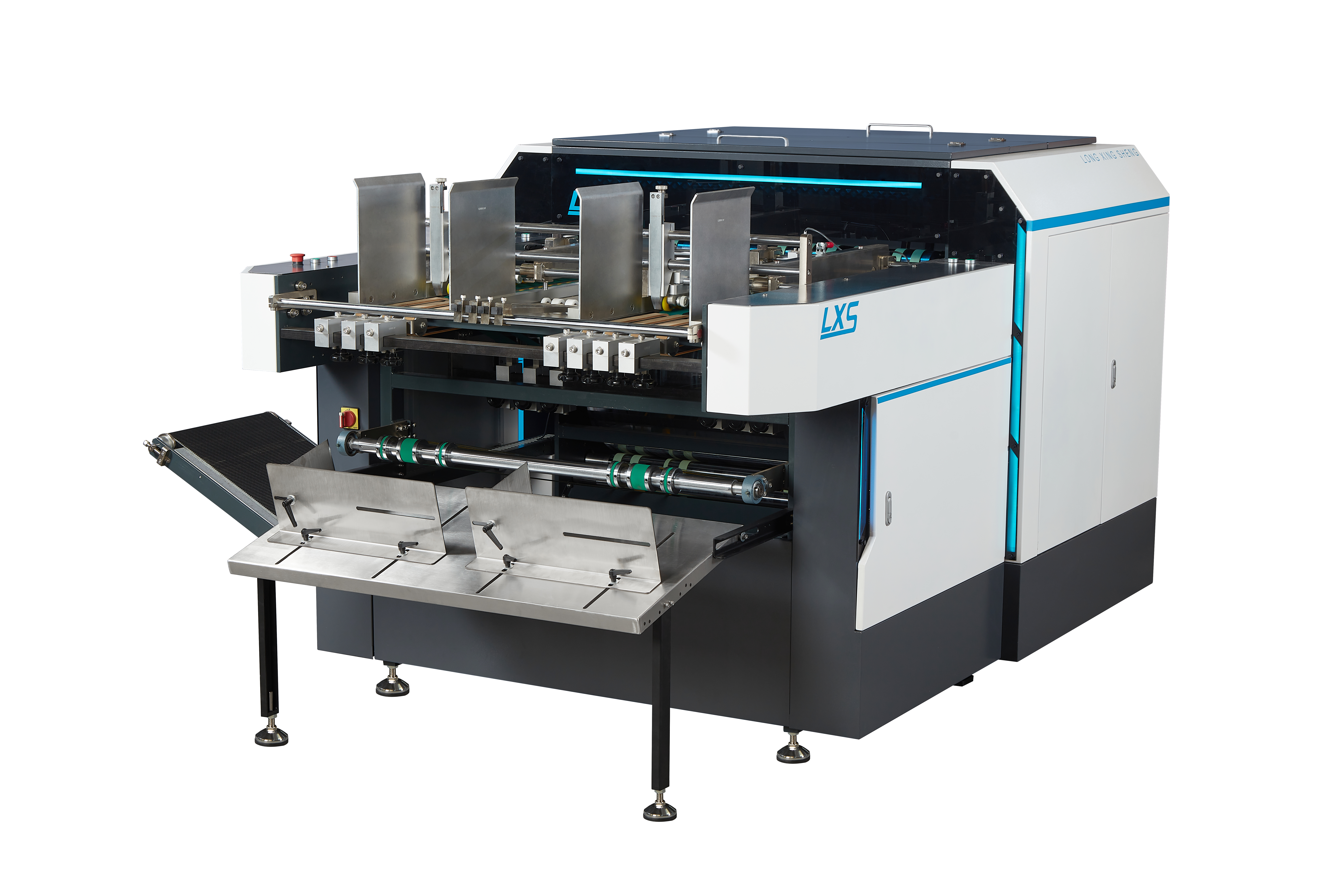

The intelligent grey board slotting machine is a high-end CNC slotting machine designed for grey board and cardboard (such as white card, gold card, art paper, etc.). Through intelligent control system and adaptive tool technology, it can achieve high-precision and high-efficiency paper processing, especially suitable for high-end packaging, luxury gift boxes, hardcover book covers and other fields with strict process requirements.
Machine model | LS-G3 |
Max grooving quantity | 8 slots |
Feeding guide adjustment method | Electric adjustment |
Blade adjustment method | Automatic size adjustment |
Blade row quantity | Two rows |
Angle adjustment method | Blade row adjustment |
Accuracy | ±0.1mm |
Highest accuracy | ±0.04mm |
Working efficiency | 60-180pcs/min |
Working speed | 15-35mmin |
Max size(two feeding guides) | L600*W450mm(Feeding width) |
Min size | L140*W140mm |
Cardboard thickness | 0.8-3mm |
Carton paper thickness | 220-600g |
Air supply | 10L/min 0.6mpa |
Motor power | 3.2kw/380v |
Machine dimension | L2800*W1950*H1700 |
Mlachine weight | 1870KG |
1. Digitally intelligent, adjust the grooving dimensions
2. Digital electric adjustment with positioning gague
3. Intelligent electric adjustment of belts and cutter blade
4. Paper feeding aliging system
Paper Feeding Aligning System
An advanced paper feeding system with automatic alignment ensures precise and consistent material placement, minimizing waste and improving productivity.
The system detects and corrects misalignment in real time, guaranteeing flawless processing even at high speeds.
Versatile for Small-Scale Work – Min Size: 140×140mm
The machine accommodates small-sized materials down to 140×140mm, providing flexibility for intricate and detailed projects.
Precision-engineered components ensure clean grooves regardless of material size.
Luxury packaging: Precision slotting and creasing of jewelry boxes, high-end wine boxes, and cosmetic gift boxes.
Post-printing processing: V-groove forming of hardcover book covers and art album grey boards.
Commercial display: Mass production of grey boards
Industrial design: Cardboard slotting applications.
