Double channel intelligent fully automatic rigid box making machine. Double cover paper feeding, visual positioning, double corner taping and double forming station, producing top and bottom boxes at the same time.
| Quantity: | |
|---|---|
LS-1150
LXS

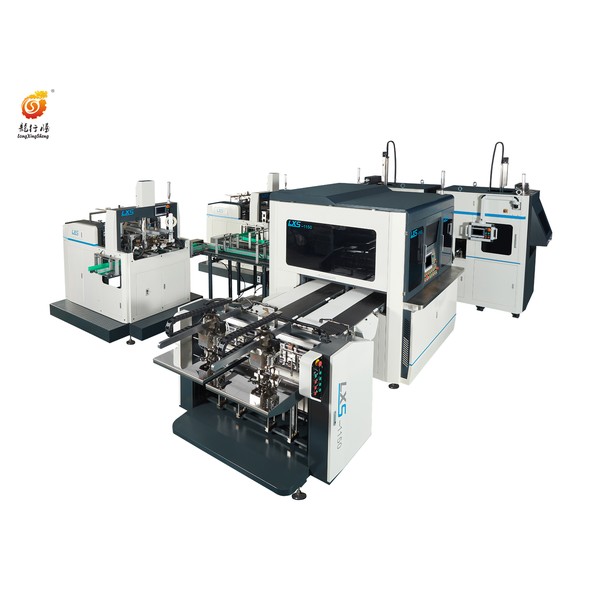

LS-1150 Bi-Channel Intelligent Fully Automatic Rigid Box Making Machine - double cover paper feeding, visual positioning, double corner taping and double forming station. Double channel for different or same size boxes at the same time, with single channel running mode available. Speed up to 25 pairs per minute (50 pcs top + bottom).
Engineered with the latest technological innovations, the LS-1150 offers higher production speed than conventional models and features a dual-channel design that simultaneously produces both top and bottom boxes. It can output 50 boxes per minute, equivalent to 25 complete rigid box sets, and operators can assemble and pack directly at the end of the line.

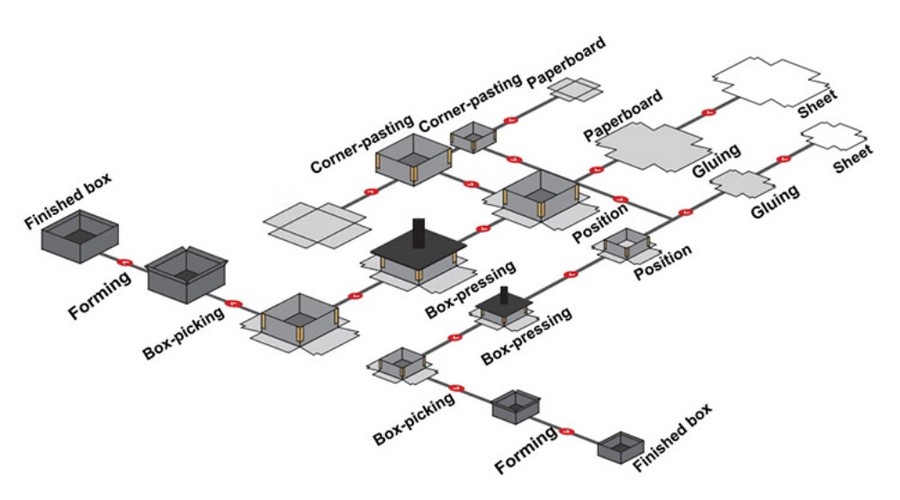

The LS-1150 produces top and bottom boxes concurrently and can also handle two completely different box sizes at the same time. One machine delivers the output of two conventional machines while requiring only the space of a single machine and one operator.

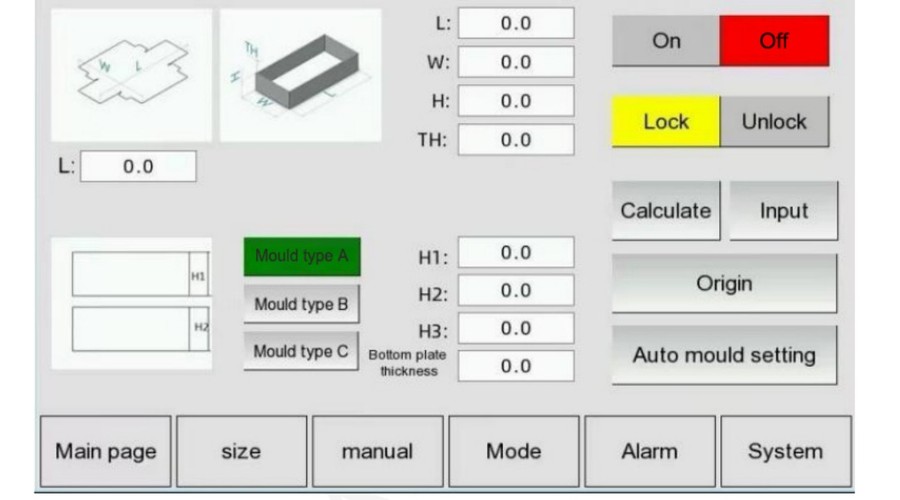

The operator simply inputs the cover paper size and box dimensions, and the machine completes the setup automatically. Setup time is 30 minutes per channel and 60 minutes for the full machine.
A servo motor and cam-driven mechanism ensure high-speed, precise feeding while preventing double sheets. Two independently controlled paper loading platforms provide enhanced flexibility and efficiency.

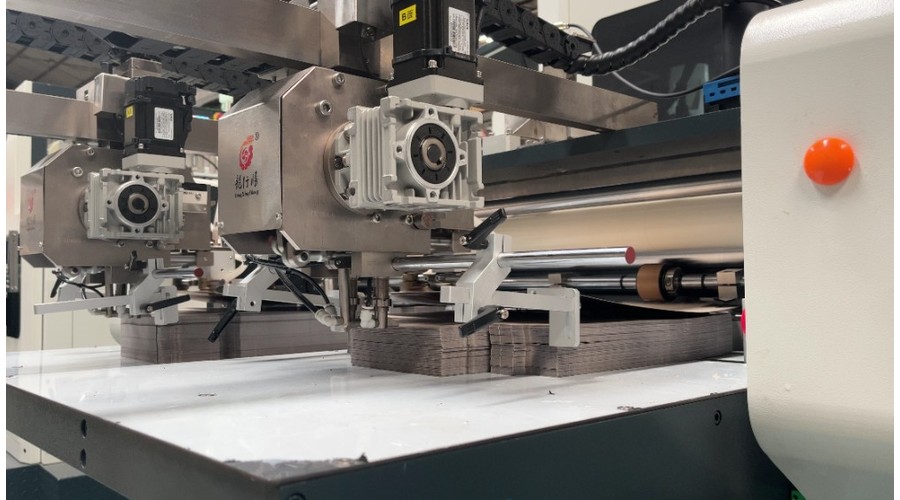

A special anti-leaking system avoids glue leaking. Daily cleaning of the gluing part has been optimised to less than 20 seconds.
The integrated tape feeding device prevents jamming and is compatible with ultra-thin tapes down to 0.07 mm.
Allows uninterrupted operation by enabling a new stack to be loaded while another is in use.

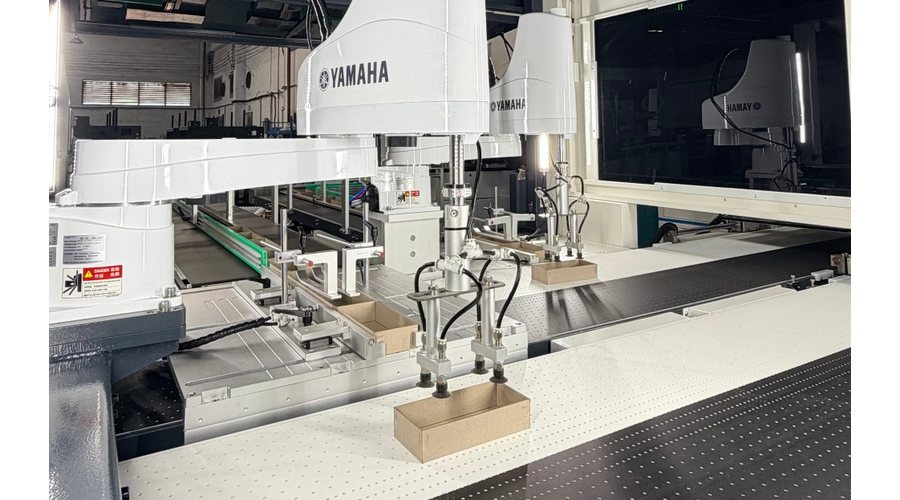

The CCD positioning system uses two high-pixel cameras and a Yamaha robotic arm. It requires only 10 minutes for setting, picks up two types of boxes at the same time and places them precisely on the cover paper with +/-0.1 mm accuracy.
The presser ensures the box adheres firmly and smoothly to the paper with adjustable height. Two forming stations at the end of the machine finish box forming at very high speed, and a box pick-up system avoids scratching the cover paper.
| Machine model | LS-1150 |
| Paper size (max) | L730 x W510 mm |
| Paper size (min) | L135 x W120 mm |
| Cardboard size (max) | L650 x W500 mm |
| Cardboard size (min) | L110 x W90 mm |
| Box size (length) | L80-490 mm |
| Box size (width) | W65-400 mm |
| Box size (height) | H15-120 mm |
| Paper thickness | 100-350 g/m2 |
| Cardboard thickness | 0.8-3 mm |
| Edge folding size | 10-90 mm |
| Turn-in depth | 15-80 mm |
| Air pressure | 1 m3/min, 0.6 MPa |
| Working speed | 12-28 pairs/min |
| Motor power | 36 kW / 380 V / 3 phase |
| Heating power | 6 kW / 380 V |
| Paper stacking height | 600 mm / 100 kg |
| Machine weight | 7000 kg |
| Machine dimension | L6860 x W6690 x H2758 mm |
Machine video: LS-1150 Bi-Channel Rigid Box Making Machine
LXS specializes in rigid box making and board processing machines. Contact us with your box sizes and target output for a line configuration matched to your production.
