Automatic grooving and corner cutting machine that finishes both processes at the same time. No die-cut moulds required, saving time and cost, with automatic setup for blades, belts and corner cutting length.
| Quantity: | |
|---|---|
LS-G7
LXS

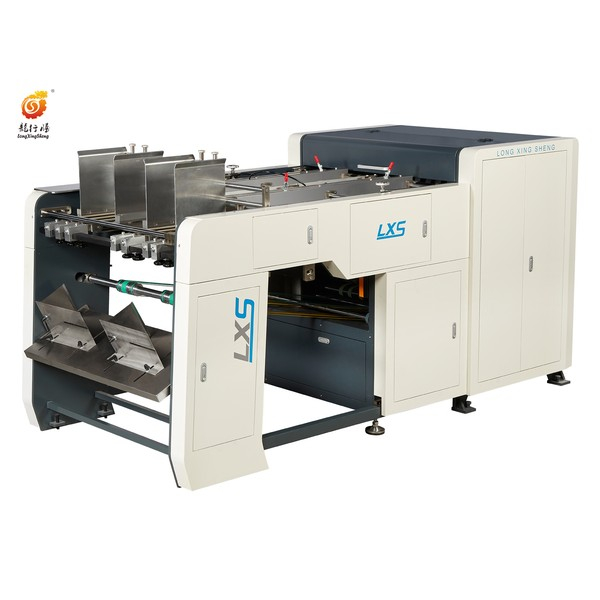

LS-G7 - The LS-G7 automatic grooving and corner cutting machine completes cardboard grooving and corner cutting at the same time. Cardboard comes out ready to make rigid boxes - no die-cutting moulds required, saving both time and cost.

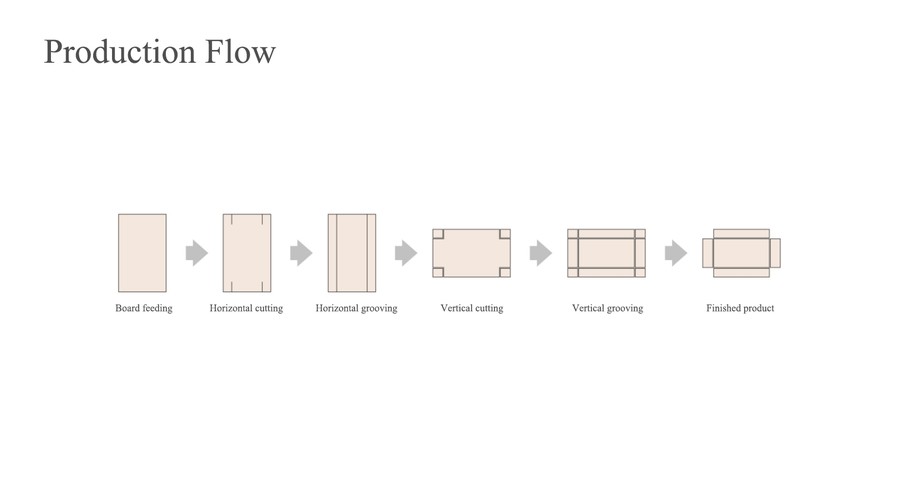

This machine combines grooving and corner cutting and eliminates the need for die-cutting. Load the slitted cardboard, and it comes out ready for rigid box making. No die-cut moulds are required.
Each grooving blade is independently controlled by a servo motor and all settings are accessible on a single page. After setup, the grooving blades and belt automatically move to the preset positions.

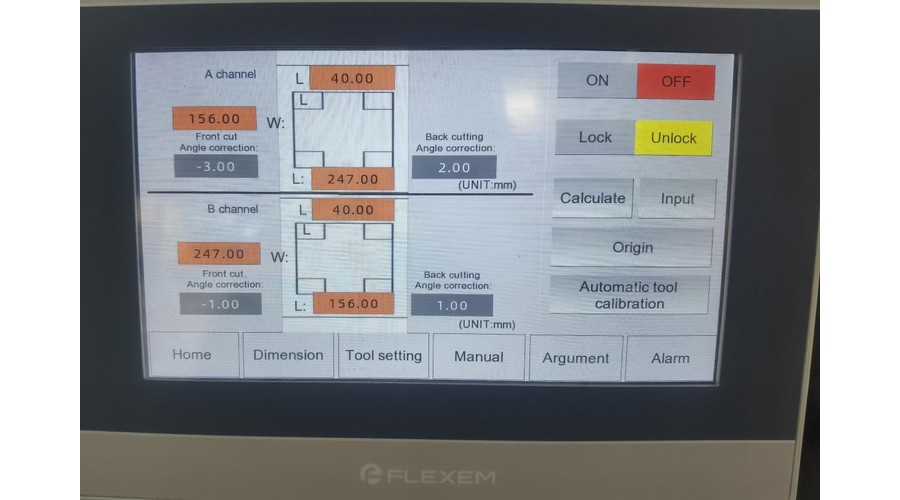

The corner cutting length is digitally adjustable. Simply input the value and the machine completes the setup automatically.

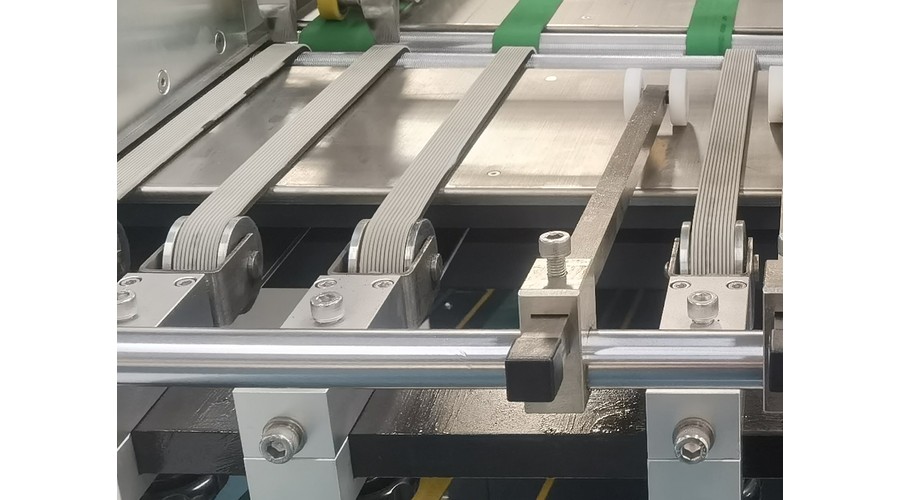

A feeding and aligning system ensures cardboard is cut and grooved exactly at the preset positions.
Load a pile of cardboard onto the machine while it keeps running - no need to stop for loading, ensuring high speed and maximum efficiency.

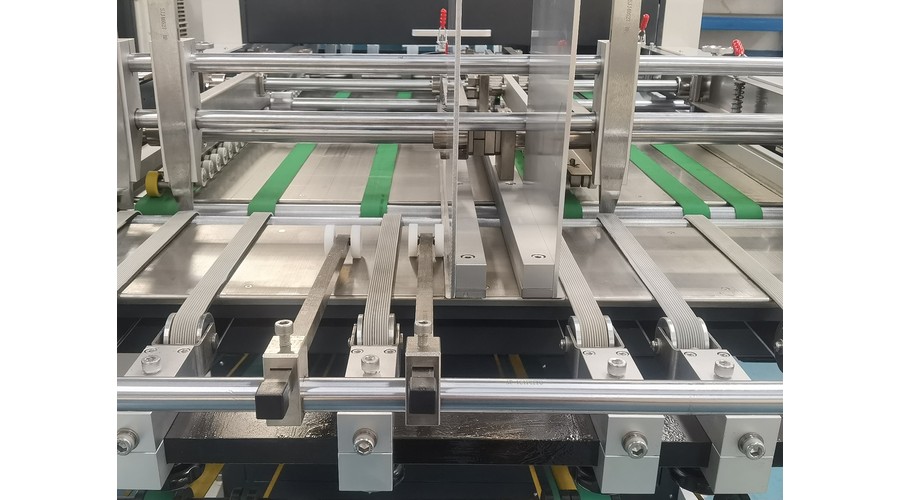

Grooved products are automatically stacked on the collection table so the operator can pick them up easily and move to the next production step.
| Machine model | LS-G7 |
| Max grooving quantity | 4 slots |
| Work speed | 15-35 m/min |
| Work efficiency | 20-80 pcs/min |
| Quantity of cutting knife | 4 knives |
| Max size | 430 x 430 mm |
| Min size | 150 x 150 mm |
| Cutting length | 15-120 mm |
| Cutting accuracy (length) | +/-1 mm |
| Grooving accuracy | +/-0.1 mm |
| Cardboard thickness | 1-3 mm |
| Blade adjustment method | Digital automatic adjustment |
| Belt adjustment method | Electric adjustment |
| Blade row quantity | One row |
| Angle adjustment method | Blade row adjustment |
| Cutter adjustment method | Electric adjustment |
| Air supply | 10 L/min, 0.6 MPa |
| Motor power | 6.5 kW / 380 V / 3 phase |
| Machine dimension | L3050 x W1520 x H1500 mm |
| Machine weight | 1950 KG |
Machine video: LS-G7 Automatic Grooving and Corner Cutting Machine
LXS specializes in rigid box making and board processing machines. Contact us with your board size and target output for a machine configuration matched to your production line.
